Creating a Circular Progress Bar with a Gradient using Jetpack Compose

Are you ready to add some colorful flair to your Jetpack Compose project? In the following lines, you will be walked through implementing a circular progress indicator with a gradient.

With each step, we will discover a bit of Jetpack Compose implementation, ++code>Canvas++/code> API and ++code>SweepGradient++/code>.

Let's take a look at the design that our designer has provided for implementation:

it provides the following challenges:

  • a custom component (circular shape)
  • a circular gradient color

Forking an existing component!

Having to implement such component from scratch can be intimidating. If you lack experience with ++code>Canvas++/code> and graphics, your implementation could lead to:

  • performance issues
  • sub optimal maintenance
  • lots of time spent to implement it!

The idea here is to stand on the shoulders of giants and derive a Jetpack Compose Component: ++code>CircularProgressBar++/code>.

Let's try to implement it!

Step 1: Using Compose CircularProgressIndicator

This is the result using the standard ++code>CircularProgressIndicator++/code> :


  • We can’t set a gradient for the indicator color
  • We can’t set a background circle (”track”) under the indicator

Step 2: Study Compose CircularProgressIndicator source code

Let's take a closer look at the source code of ++code>CircularProgressIndicator++/code>. You can easily navigate to it, or browse the Android X source base on GitHub.

For information, the version of the file used is right here. (++code>1.0.0-alpha11++/code>)

++code>CircularProgressIndicator++/code> has slightly evolved since then, but the modification proposed should be applicable without issue.

What's really striking is how surprisingly easy the code is to follow! This is a massive improvement over the View system (for instance, the 8k+ lines of TextView).

It seems to have been written by humans who have actual problems. Like any codebase, it contains clarifying comments and even TODOs!

Now, let's duplicate the ++code>CircularProgressIndicator()++/code> composable function and its sub-functions. Only three functions and a few modifications are needed to isolate the component and make it compile. Once again, this is good news; great job on decoupling, Compose developers!

Step 3: Add track

Adding the track can be done by using ++code>drawDeterminateCircularIndicator()++/code> as it’s done for the Indicator.

Step 4: Discover Gradient and brush

Let’s now discover the Gradient API. We don’t try to match our design yet, just draw the circles with some gradient.

Just create a new ++code>drawCircularIndicator()++/code> taking 2 colors instead of one, and using the brush param of ++code>drawArc()++/code>.

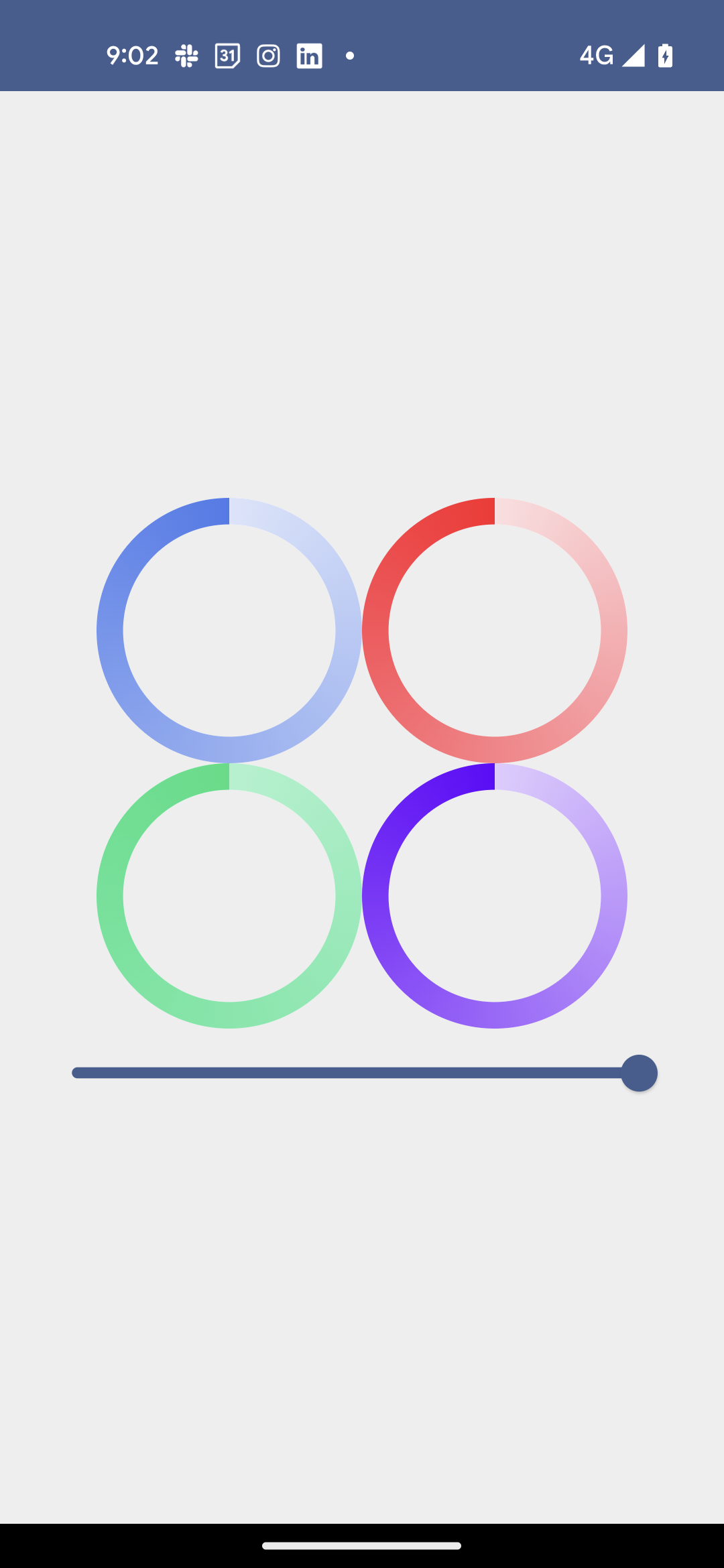

The result is starting to look like our design!

Step 5: Using SweepGradient

++code>Brush.sweepGradient()++/code> allows to draw what is sometime called circular gradient. This is what is used in the reference design.

So far, the out of the box result is near to what is expected, but needs minor tweaks.

Step 6: Fix gradient angle

First, the gradient is supposed to be drawn from the top of the circle, not the right. Fortunately, ++code>Canvas++/code> API provides a convient api to rotate what’s drawn:

This gives us the expected result:

Except for a small caveat: it only works when progress is 100%. Otherwise, it’s broken:

Let’s fix this!

Step 7: Fix progress angle

Here, we just need a one line change: add 90 degrees to the start angle:

Now, the progress is drawing as intended.

Step 8: Make gradient proportional to progress

Here, we want to draw the full gradient (from start color to end color) whatever the progress is. we can replace the color list with an array of ++code>Pair<Float, Color>++/code> which gives key points to draw the gradient. We want to sync the gradient with the progress angle, so we use the ++code>sweep++/code> value to get the end point.

Note: We could have more than two key points which would allow to use more than two colors.

And here is the final result:


  • The Jetpack Compose components appear to have been written by actual human Android developers, and that's great!
  • It's easy to fork and find inspiration in the Jetpack Compose implementation, which is open source. This is a luxury that your iOS colleagues don't have :-)
  • The Canvas API is very powerful, and leveraging it should allow for the implementation of almost any custom design!

You can find the source code (with step by step commits 🤓) on which this article  is based here : compose-gradient-progress-indicator.
